the ideal solution for any operation
Agro-Gate
Our Secure & Simple Solution for your Pedestrian and Vehicle access.
✅ No assembly required
✅ Plug and Play
✅ Nationwide Delivery Options
✅ Long and Short Term Hire Options
From €5880 excl. VAT
General Description
•Clearance adjustable via limit switch
2.5m - 6m (20'); (Up to 12m (40') with 2x units)
• Total height approx. 2,000 mm
• Ground clearance approx. 140-160mm
• Automatic Obstacle Detection
• Internal Emergency release
• Hot-dip galvanised
Mobile
The gate system can be set up on any compacted surface
6m clearance width
(12m with 2x units) Exact width can be set via limit switch
Can be used on both sides
Opening left and right possible
Plug-and-Play
Insert the 230V plug and the gate operates
Turnkey
The gate system is delivered fully assembled and ready for use
Short installation time
No assembly required

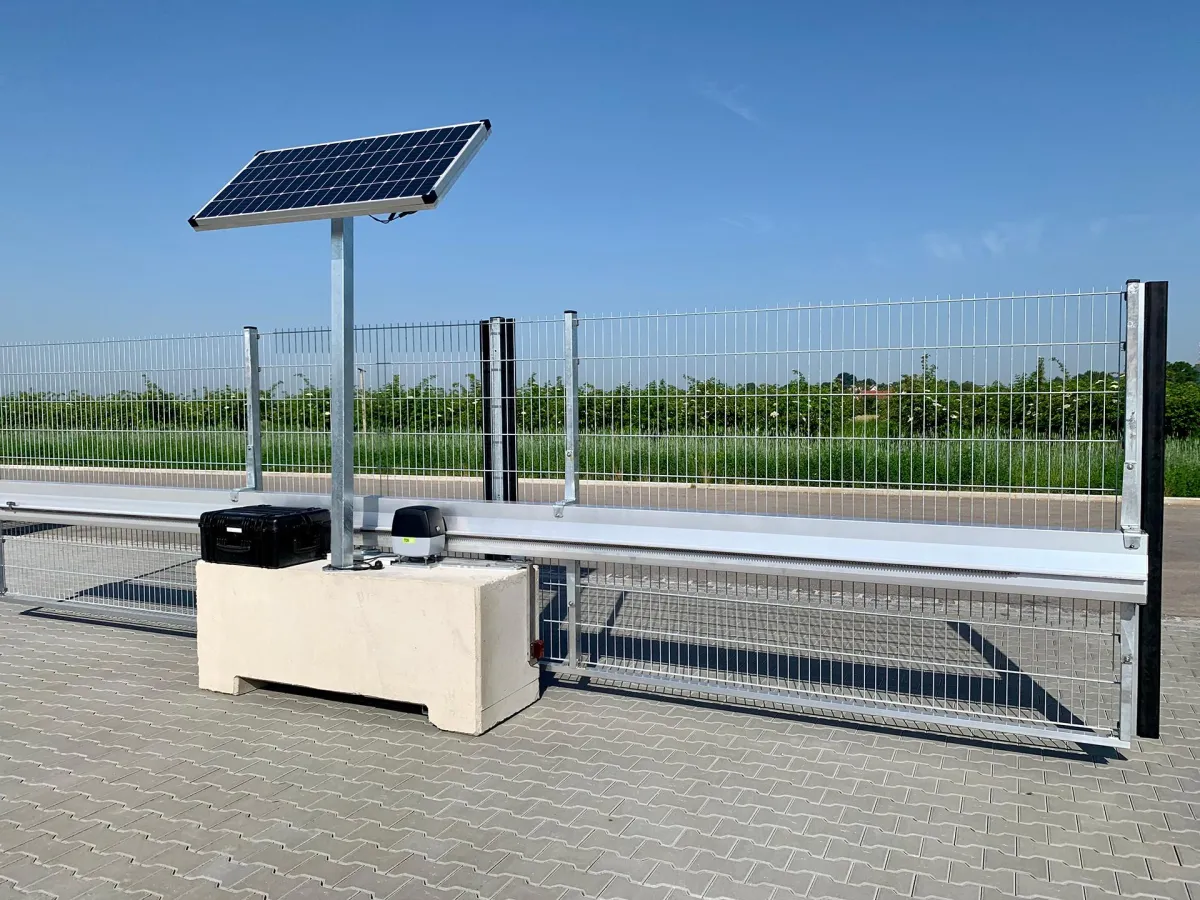

Solar Powered Version
Operating independently from the power grid.
The autonomous Agro-Gate requires no 230V connection and is equipped with waterproof, lockable power electronics. Designed for tough conditions from -20°C to +50°C, it includes a 180W photovoltaic panel and mast for charging flexibility.
With a fully charged battery, it can operate for approximately 80 movements even in continuous darkness. The system comes pre-wired and ready to use.
Ease Of use
Thanks to its extremely short setup time and without any assembly, this gate is the ideal solution for any operation.
The units can be easily moved using pallet forks or optional lifting eyes.
Fittings within the base concrete block allow for permanent fixture of the unit to the ground if required.
Ease Of use
Thanks to its extremely short setup time and without any construction work, this gate is the ideal solution for any operation. What are you waiting for? Experience comfort and flexibility with the innovative Agro Gate!
Scope of delivery
Fully Galvanised gate with rollers
Drive unit
Gate Controller: Berner w/Agro-Gate modification
1x 2-channel keyfob SE-120
Photoelectric beam sensor with reflector/receiver
Power cord for on-site 230V
Rubber Safety contact strips
(2x on the wing – 2x on the concrete block – 2x on the fence connection post)
Precast concrete unit
Size: Length x Width x Height: 1600mm x 600mm x 700mm
Weight approx.: 1500kg
Double wire mesh panel
Height: 1800mm (total gate height including ground clearance: approx. 2000mm) fully galvanised
The clearance width can be individually adjusted via limit switches.
Maximum clearance width: 6 meters
Optional Extras
Upgrade Your Gate With Our Selection of Extras
Solar Powered Version
Fully Independent Site Security From an additional €2495 excl. VAT
Freely Selectable Rail Colour
Customise powder coating
according to your specific cations
€1000
excl. VAT
Manual Version
Gate system equipped for manual operation.
Includes pre-mounted floor bolt and ground sleeve.
Delivery without electrical components and without safety contact strips.
Bidirectional Control
2 gates are installed opposite each other, achieving a clearance width of 12m.
With this control, both wings operate synchronously with ONE button press simultaneously
(if this option is not selected, each wing operates independently).
€500
excl. VAT
LED Flashing Light
Includes mounted aluminium pillar, used as a warning signal during gate operation, pre-wired and ready for connection.
€300
excl. VAT
Extra Key Fob
Type SE-120 with 2 Buttons
€46
excl. VAT
Wireless Keypad
Can be placed at any location within wireless range without the need for wiring.
€130
excl. VAT
Guide Post
Includes anchor plate for existing foundation and extension for embedding, including pre-mounted reflector. Used in high-security situations, providing additional reinforcement when the gate is closed.
€356
excl. VAT
Ground Pegs
Includes 2 brackets for screwing onto the precast concrete unit. Prevents twisting or lifting of the foundation.
€2495
excl. VAT
Lifting Eyes
For relocation via hoist.
€45
excl. VAT
