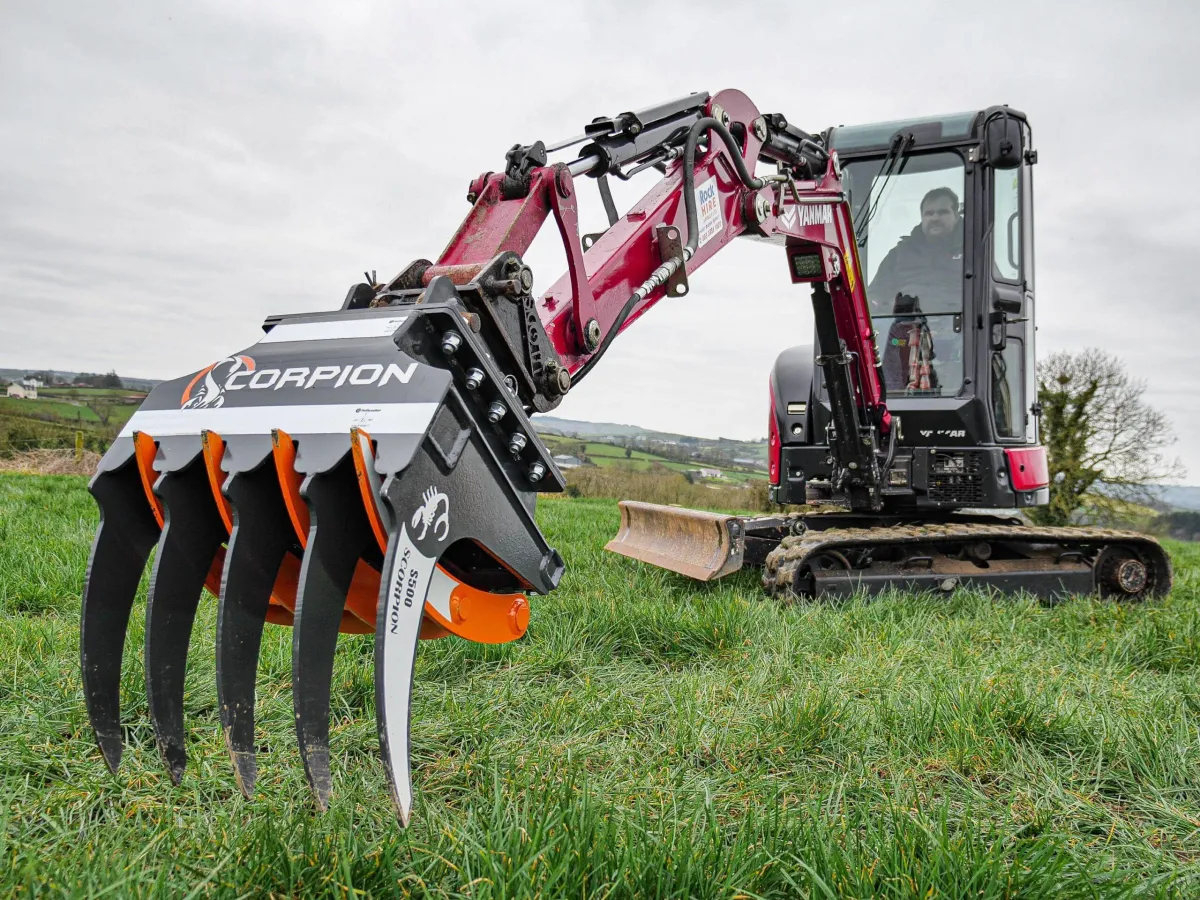

Scorpion Excavator Grabs for Excavators By MDE

🔔 Now Offering Machinery Attachments

MDE Scorpion excavator grab is an attachment for operators to suit a wide variety of uses on daily projects whether your clearing land with roots, hedges, boulders, stumps or debris. It’s perfect for landscape maintenance, feeding mulchers/chippers, loading trailers or separating material.

One of the main key features of the Scorpion grab is its ability to give you a breakout force like no other grab on the market.

With its fixed front ripper teeth, you can easily pull-out tree stumps, clear overgrowth and stack rock armour. It can also be used for demolition projects to take down buildings, pick out steels and timbers.

Another benefit of the Scorpion grab design is that its moving grapple can be closed tight, which allows it to be used as an excavator rake where it can feather through material. The moving grapple closing in tight also means it can easily hold onto the smallest of diameter material.

MDE Scorpion Grabs are very simple to install and maintain. Connect the hydraulic pipes into your excavators’ auxiliary lines and you’re in full control of your grab. To maintain your grab all you need to do is grease hinge points daily.

Application Areas

✔️ Demolition projects, loading trailers, and feeding mulchers.

✔️ Private and commercial landscape maintenance.

✔️ Suitable for the clearing of agricultural land.

✔️ Recycling plants separating material.

✔️ Maintenance work in the utilities sector.

✔️ Picking up trees and pulling roots.

✔️ Clearing land with boulders or stumps.

Key Features

✔️ Made only from HARDOX®

✔️ Easy Access Greasing Points

✔️ Powerful Hydraulic Cylinders

✔️ Hardox Chassis

✔️ Bolt On Mounting Platform

✔️ Quick and easy to set up (aux pipes, hammer pipes)

✔️ Range of models available to cover machines from 2.7t – 50t

Scorpion S500

It may be small, but it's mighty!

Excavators: 1.5t - 5t ≈ 3,306lbs - 11,023lbs

The Scorpion S500 Grab is the smallest in the range, designed for small excavators to handle garden and landscape work, feed mulchers, or load trailers.

Built for durability and ease of use, the S500 is an essential tool for improving workflow efficiency.

A key feature of the Scorpion design is the **fixed position of one grapple**, allowing it to function like a bucket while the other grapple clamps down.

Its moving grapple can close tightly, enabling precise material handling and acting as a land rake. The **bolt-on hitch** provides compatibility with multiple machines.

Specifications
Excavators	1.5t - 4t ≈ 3,306lbs - 8,818lbs
Width	500mm ≈ 19 ¾ inch
Teeth Thickness	10mm ≈ ⅜ inch
Teeth Separation	112mm ≈ 4 ⅜ inch
Teeth Depth	400mm ≈ 15 ⅜ inch
Grapple Opening	670mm ≈ 26 ⅜ inch
Weight	140kg ≈ 308lbs

Scorpion S750

The K200 is super lightweight yet extremely strong.

Excavators 2.7t - 10t ≈ 5,952lbs - 22,046lbs

The Scorpion S750 is the second smallest in the Scorpion family, but don’t let its size fool you. With powerful gripping force, this grab securely holds every load with precision.

A key feature of the Scorpion design is the **fixed position of one grapple**, allowing operators to use it like a bucket while clamping with the other grapple.

Its moving grapple can close tightly, making it effective for **feathering through material** and acting as a land rake.

The **bolt-on hitch** ensures quick switching between different machines for increased versatility.

Specifications
Excavators	4t - 7t ≈ 8,818lbs - 15,432lbs
Width	750mm ≈ 29 ½ inch
Teeth Thickness	15mm ≈ ⅝ inch
Teeth Separation	160mm ≈ 6 ¼ inch
Teeth Depth	460mm ≈ 18 inch
Grapple Opening	780mm ≈ 30 ¾ inch
Weight	340kg ≈ 749lbs

Scorpion S900

Our most versatile tree shear in the range

Excavators 6t - 21t ≈ 13,227lbs - 46,297lbs

The Scorpion S900 is a **highly versatile excavator grab** designed for handling rocks, logs, metal, and even raking soil.

Equipped with a **powerful hydraulic cylinder**, it delivers excellent gripping force, ensuring efficient and precise material handling.

Built for tough working conditions, the S900 features a **robust, durable design**, making it a valuable addition to any landscaping or construction site.

A **fixed grapple position** allows it to function like a bucket, while the moving grapple provides a **tight grip for feathering through material**, acting as a land rake.

The **bolt-on hitch** enables quick attachment swaps between different machines, enhancing its adaptability.

Specifications
Excavators	8t - 10t ≈ 17,637lbs - 22,046lbs
Width	900mm ≈ 35 ½ inch
Teeth Thickness	20mm ≈ ¾ inch
Teeth Separation	200mm ≈ 7 ⅞ inch
Teeth Depth	560mm ≈ 22 inch
Grapple Opening	930mm ≈ 36 ⅝ inch
Weight	390kg ≈ 859lbs

Scorpion S1000

First in the Koala Family

Excavators 12t - 36t ≈ 26,455lbs - 79,336lbs

The Scorpion S1000 is the **largest single-cylinder grab** in our range, offering a lighter, lower-cost alternative to the S1100.

Designed for multiple applications, it handles **rocks, logs, metal, and even rakes soil** with ease.

Its **powerful hydraulic cylinder** delivers excellent grip strength for efficient and precise material handling.

A **fixed grapple position** allows it to function like a bucket, while the moving grapple enables **feathering through material**, acting as a land rake.

The **bolt-on hitch** ensures easy attachment swaps between different machines for increased versatility.

Specifications
Excavators	8t - 14t ≈ 17,637lbs - 30,864lbs
Width	1000mm ≈ 39 ⅜ inch
Teeth Thickness	25mm ≈ 1 inch
Teeth Separation	220mm ≈ 8 ⅝ inch
Teeth Depth	630mm ≈ 24 ¾ inch
Grapple Opening	1000mm ≈ 39 ⅜ inch
Weight	616kg ≈ 1358lbs

Scorpion S1100

King of the Koala’s

Excavators 16 - 40t ≈ 35,274lbs - 88,184lbs

The Scorpion S1100 is designed for **small and large-scale operations**, making it a highly versatile grab for excavators.

Built with **30mm Hardox® teeth**, it excels in **landscape maintenance, feeding mulchers, loading trailers, and material separation**.

Equipped with **two powerful hydraulic cylinders**, the S1100 clamps tightly onto boulders and stumps for efficient material handling.

With a **1275mm jaw opening**, it can grab and move large volumes of material, making it essential for clearing land with **roots, debris, boulders, or stumps**.

The **fixed grapple position** allows bucket-like operation, while the **moving grapple provides precise control for feathering through material**.

A **bolt-on hitch** ensures quick attachment swaps between different machines, enhancing flexibility.

Specifications
Excavators	12t - 18t ≈ 26,455lbs - 39,683lbs
Width	1100mm ≈ 43 ¼ inch
Teeth Thickness	30mm ≈ 1 ⅛ inch
Teeth Separation	230mm ≈ 9 inch
Teeth Depth	720mm ≈ 28 ⅜ inch
Grapple Opening	1300mm ≈ 51 ⅛ inch
Weight	900kg ≈ 1984lbs

Scorpion S1600

King of the Koala’s

Excavators 16 - 40t ≈ 35,274lbs - 88,184lbs

The Scorpion S1600 was the first in the **Scorpion range**, built with a **heavy-duty Hardox® chassis** and **30mm Hardox® teeth** for maximum strength.

Equipped with **two powerful hydraulic cylinders** and a **1390mm jaw opening**, it effortlessly clamps onto **boulders, stumps, and forestry roots**.

Weighing **1487kg**, this grab is one of the **most robust and resilient** in its class, handling demanding excavation and material handling tasks with ease.

A **fixed grapple position** allows bucket-like functionality, while the moving grapple ensures **tight control for precision handling**.

The **bolt-on hitch** enables quick attachment swaps between different excavators, increasing its versatility on-site.

Specifications
Excavators	16t - 30t ≈ 35,274lbs - 66,138lbs
Width	1600mm ≈ 63 inch
Teeth Thickness	30mm ≈ 1 ⅛ inch
Teeth Separation	230mm ≈ 9 inch
Teeth Depth	810mm ≈ 31 ⅞ inch
Grapple Opening	1390mm ≈ 54 ¾ inch
Weight	1487kg ≈ 3,278lbs

Scorpion S1900

King of the Koala’s

Tilt Angle 55°

The **Scorpion S1900** is the **largest grab in the Scorpion range**, built for extreme-duty excavation and material handling.

Featuring a **heavy-duty Hardox® chassis** and **50mm Hardox® teeth**, it delivers unmatched durability and performance.

Twin **powerful hydraulic cylinders** provide an impressive **bite force**, making it easy to clamp onto **boulders, stumps, and forestry roots**.

Built for **tough working environments**, the S1900 is ideal for **forestry clearance, boulder removal, and heavy-duty construction applications**.

A **fixed grapple position** allows bucket-like operation, while the **moving grapple ensures precise handling**.

The **bolt-on hitch** enables easy switching between different excavators, adding flexibility on-site.

Specifications
Excavators	30t - 50t ≈ 66,138lbs - 110,231lbs
Width	1900mm ≈ 74 ¾ inch
Teeth Thickness	50mm ≈ 2 inch
Teeth Separation	310mm ≈ 12 ¼ inch
Teeth Depth	1000mm ≈ 39 ⅜ inch
Grapple Opening	1560mm ≈ 61 ⅜ inch
Weight	2800kg ≈ 6,172lbs
