Vortex Mulcher

By MDE Machinery

Confused about which mulcher suits your workflow?

MDE’s Vortex series is designed to handle heavy material mulching while also offering precise trimming for hedgerows, clearing overgrowth, and managing invasive vegetation. Built for harsh conditions, the Vortex is a heavy-duty swinging hammer mulcher that excels in multiple applications.

Application Areas

✔️ Forestry maintenance

✔️ Roadside and railway vegetation maintenance

✔️ Shredding overgrowth and clearing vegetation

✔️ Creating paths and roadways through forests

✔️ Tree and hedge trimming

✔️ Mulching trees and hedges down to ground level

Key Features

✔️ Quick-change replaceable swinging hammer teeth

✔️ Enclosed protected hydraulics

✔️ Hydraulic adjustable door/hood for easy material feed and to prevent material spread

✔️ Easy Grease System with piped greasing points

✔️ Covered bearings

✔️ Heavy-duty replaceable skid plates

✔️ Bolt-on mounting bracket

✔️ Rear chain tails for material speed reduction

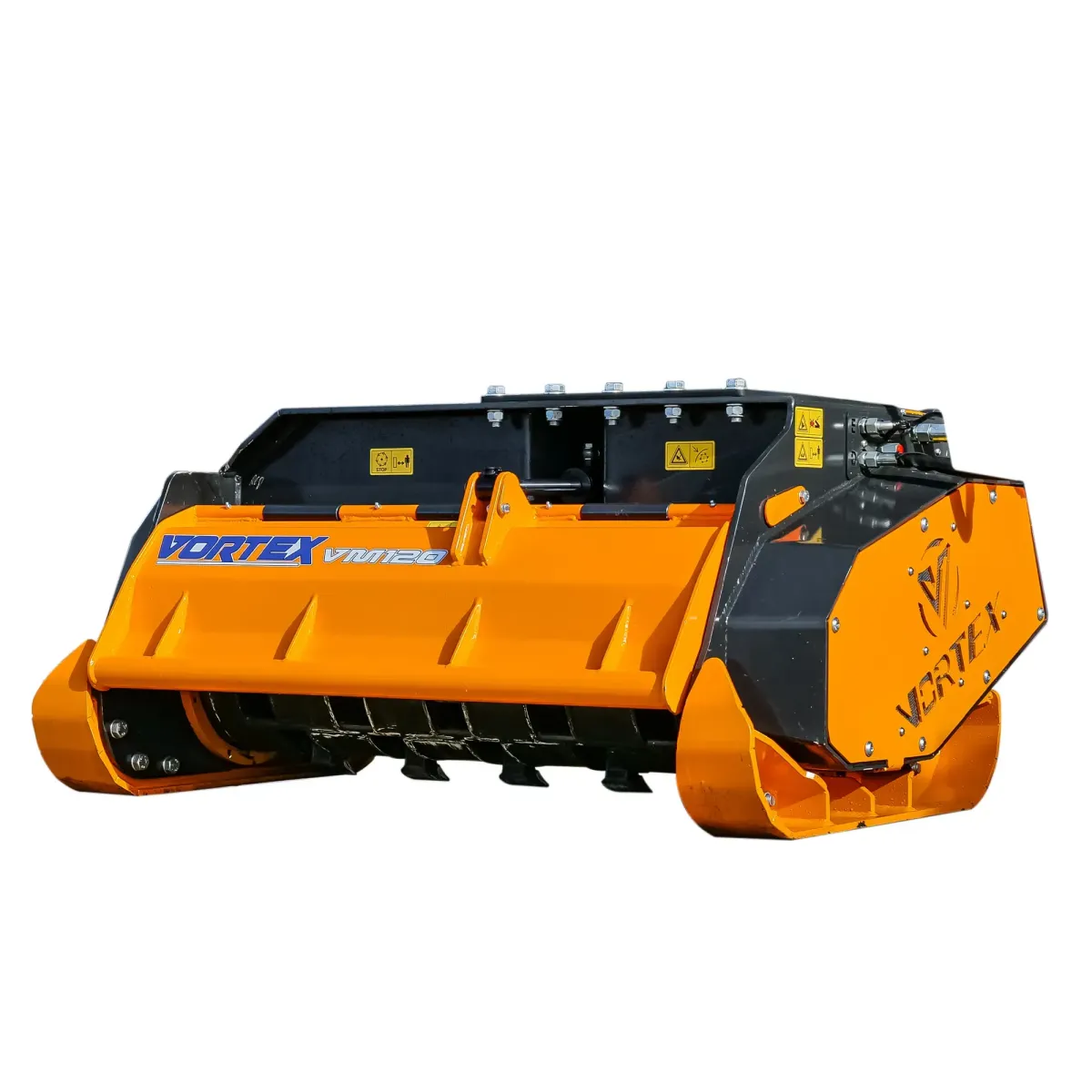

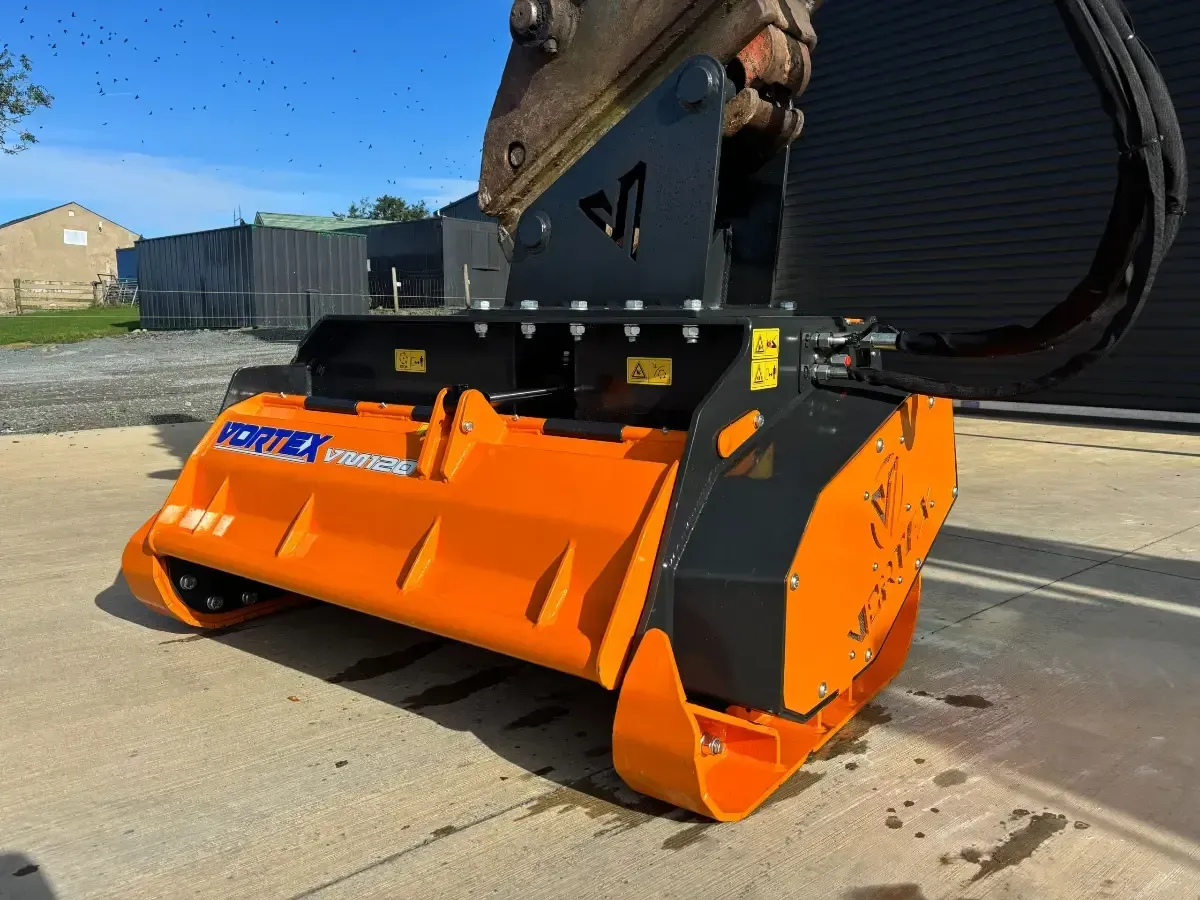

VM120

Easily Shred Material

Excavators 10t - 20t ≈ 22,046lbs - 44,092lbs

The Vortex VM120 efficiently shreds and mulches material up to 200mm (8 inches) while also handling hedge trimming, overgrowth, and invasive vegetation.

Designed for high performance, it features an enclosed shaft and bearings, adjustable hydraulic door, and a heavy-duty build for demanding environments.

Specifications
Excavators	10t - 20t ≈ 22,046lbs - 44,092lbs
Shredding Diameter	200mm ≈ 8 inch
Width	1200mm ≈ 47 ¼ inch
Oil Pressure	180 bar - 350 bar
Hydraulic Flow	90L - 170L ≈ 19.79gal - 37.39gal
Weight	960kg ≈ 2,116lbs
